Layer Information

Layer Information

Benanza affords you a few ways to examine the topological structure (or architecture) of models. This section describes the base case, where given a model it prints out all the layers. Subsequent sections describe how to get the layer shape information and layer statistics across models from the tool.

Theoretical Flops

Users can get the theoretical flops of a model by using the flopsinfo command. The command allows one to compute the theoretical flops for each layer within the network.

benanza flopsinfo -h
Get flops information about the model

Usage:
  benanza flopsinfo [flags]

Aliases:
  flopsinfo, flops

Flags:
  -h, --help   help for flopsinfo

Global Flags:
  -b, --batch_size int       batch size (default 1)
  -f, --format string        print format to use (default "automatic")
      --full                 print all information about the layers
      --human                print flops in human form
  -d, --model_dir string     model directory
  -p, --model_path string    path to the model prototxt file
      --no_header            show header labels for output
  -o, --output_file string   output file name

Usage

You can also get the flop information as a table (default). For example, for AlexNet, the theoretical flops are:

benanza flopsinfo --model_path //AlexNet/model.onnx
FLOP TYPE #
MultipleAdds 655622016
Additions 463184
Divisions 906984
Exponentiations 453992
Comparisons 1623808
General 0
Total 1314692000

You can also get the theoretical flops of each layer AlexNet. This is done by passing the --full option and here we pass the --human option to make the output more readable.

benanza flopsinfo --model_path //AlexNet/model.onnx --full --human
LAYERNAME LAYERTYPE MULTIPLYADDS ADDITIONS DIVISIONS EXPONENTIATIONS COMPARISONS GENERAL TOTAL
conv_1 Conv 102 MFlop 0 Flops 0 Flops 0 Flops 0 Flops 0 Flops 203 MFlop
relu_1 Relu 280 kFlop 0 Flops 0 Flops 0 Flops 280 kFlop 0 Flops 840 kFlop
lrn_1 LRN 280 kFlop 280 kFlop 560 kFlop 280 kFlop 0 Flops 0 Flops 1.7 MFlop
maxpool_1 Pooling 0 Flops 0 Flops 0 Flops 0 Flops 584 kFlop 0 Flops 584 kFlop
conv2_2 Conv 208 MFlop 0 Flops 0 Flops 0 Flops 0 Flops 0 Flops 415 MFlop
relu_2 Relu 173 kFlop 0 Flops 0 Flops 0 Flops 173 kFlop 0 Flops 519 kFlop
lrn_2 LRN 173 kFlop 173 kFlop 346 kFlop 173 kFlop 0 Flops 0 Flops 1.0 MFlop
maxpool_2 Pooling 0 Flops 0 Flops 0 Flops 0 Flops 332 kFlop 0 Flops 332 kFlop
conv_3 Conv 127 MFlop 0 Flops 0 Flops 0 Flops 0 Flops 0 Flops 255 MFlop
relu_3 Relu 55 kFlop 0 Flops 0 Flops 0 Flops 55 kFlop 0 Flops 166 kFlop
conv4_2 Conv 96 MFlop 0 Flops 0 Flops 0 Flops 0 Flops 0 Flops 191 MFlop
relu_4 Relu 55 kFlop 0 Flops 0 Flops 0 Flops 55 kFlop 0 Flops 166 kFlop
conv5_2 Conv 64 MFlop 0 Flops 0 Flops 0 Flops 0 Flops 0 Flops 127 MFlop
relu_5 Relu 37 kFlop 0 Flops 0 Flops 0 Flops 37 kFlop 0 Flops 111 kFlop
maxpool_3 Pooling 0 Flops 0 Flops 0 Flops 0 Flops 83 kFlop 0 Flops 83 kFlop
reshape_1 Reshape 0 Flops 0 Flops 0 Flops 0 Flops 0 Flops 0 Flops 0 Flops
gemm_1 Gemm 38 MFlop 4.1 kFlop 0 Flops 0 Flops 0 Flops 0 Flops 76 MFlop
relu_6 Relu 4.1 kFlop 0 Flops 0 Flops 0 Flops 4.1 kFlop 0 Flops 12 kFlop
dropout_1 Dropout 0 Flops 0 Flops 0 Flops 0 Flops 4.1 kFlop 0 Flops 4.1 kFlop
dropout_1 Dropout 0 Flops 0 Flops 0 Flops 0 Flops 4.1 kFlop 0 Flops 4.1 kFlop
gemm_2 Gemm 17 MFlop 4.1 kFlop 0 Flops 0 Flops 0 Flops 0 Flops 34 MFlop
relu_7 Relu 4.1 kFlop 0 Flops 0 Flops 0 Flops 4.1 kFlop 0 Flops 12 kFlop
dropout_2 Dropout 0 Flops 0 Flops 0 Flops 0 Flops 4.1 kFlop 0 Flops 4.1 kFlop
dropout_2 Dropout 0 Flops 0 Flops 0 Flops 0 Flops 4.1 kFlop 0 Flops 4.1 kFlop
gemm_3 Gemm 4.1 MFlop 1.0 kFlop 0 Flops 0 Flops 0 Flops 0 Flops 8.2 MFlop
softmax_1 Softmax 0 Flops 1.0 kFlop 1.0 kFlop 1.0 kFlop 0 Flops 0 Flops 3.0 kFlop

Weight Information

Benanza can examine the weights within the model to compute statistics such as distribution and histogram information. While this is outside the scope of the the paper, it shows that the tool is capable of being extended and generalized to other domains. Here we show how to get weights information for AlexNet

benanza weightsinfo --model_path ///BVLC_AlexNet/model.onnx

The command outputs a table (shown bellow)

LAYERNAME LAYERTYPE LENGTH LAYERWEIGHTSMAX LAYERWEIGHTSMIN LAYERWEIGHTSSDEV
conv_1 Conv 34944 0.44255533814430237 -0.800920307636261 0.06429448279744572
conv2_2 Conv 307456 0.4831761121749878 -0.2586861848831177 0.02538710473291357
conv_3 Conv 885120 0.46737396717071533 -0.21888871490955353 0.01679956665487417
conv4_2 Conv 663936 0.4463724195957184 -0.15847662091255188 0.018438743467314958
conv5_2 Conv 442624 1.3109842538833618 -0.48335349559783936 0.021065162399881654
gemm_1 Gemm 37752832 0.24130532145500183 -0.03843037411570549 0.004962945202842958
gemm_2 Gemm 16781312 0.6115601062774658 -0.03297363966703415 0.00794123731339782
gemm_3 Gemm 4097000 0.40080997347831726 -0.43072983622550964 0.010868346074723081

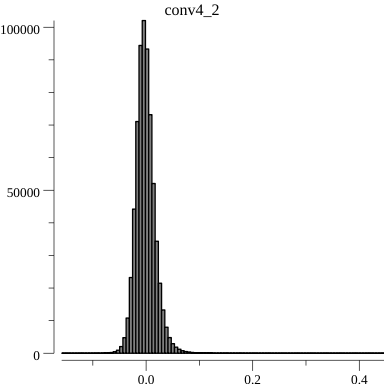

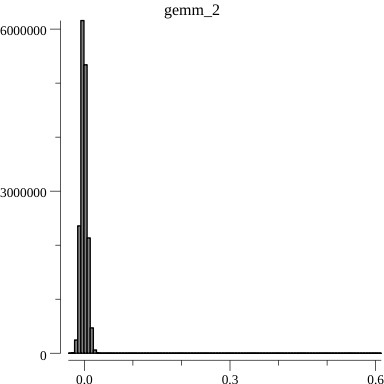

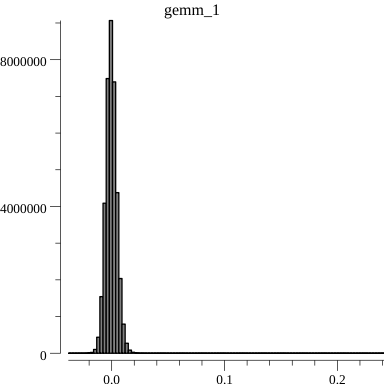

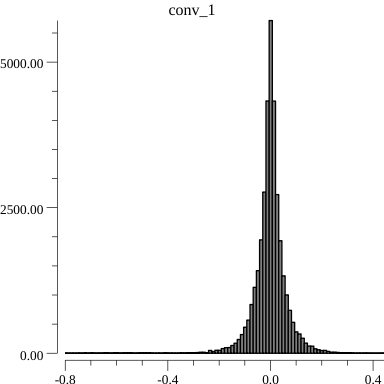

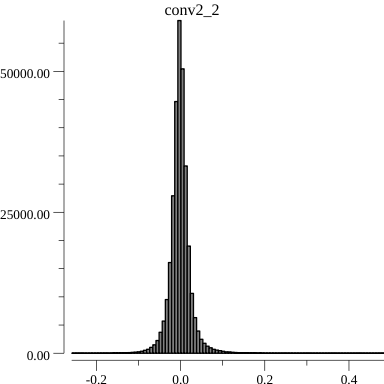

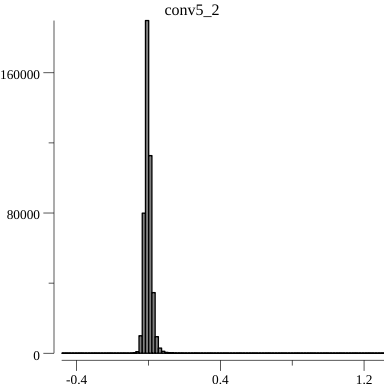

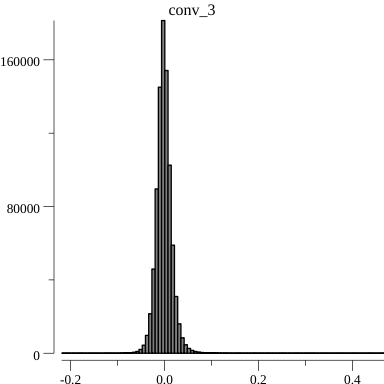

The command also generates figures that show the distribution of weights within the layers
